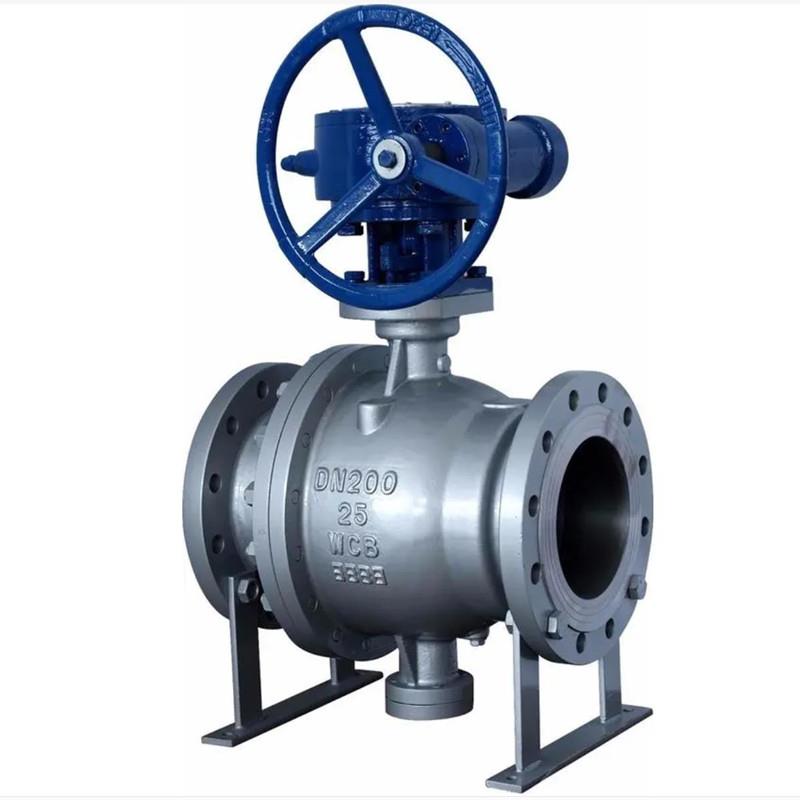

Trunnion Ball Valve

Design Standard: API 6D
Fire safe: API 607/6FA
Pressure-temperature Ratings: ASME B16.34
Size Range: 2” to 48”
Pressure Range: Class 150 to 2500
End Connections: Flanged RF, RTJ, Butt Weld
Ball Type: Forged solid ball, trunnion mounted
Flanged End Dimensions: ASME B16.5 (≤24”), ASME B16.47 Series A or B (>24”)
Butt Weld End Dimensions: ASME B16.25 Face to Face
Face to Face Dimensions: ASME B16.10
Inspection and Testing: API 6D
Body materials: WCB, CF8, CF8M CF3M, 4A,5A,6A, C95800.
Seat Materials: PTFE, RPTFE, DEVLON, NYLON, PEEK, full metal with hard facing.

NACE MR 0175
Bonnet Extension
Cryogenic Testing
Lip Seal
Viton AED
Low Fugitive Emission as per API 624 or ISO 15848
PTFE coated bolts & nuts
Zinc coated bolts & nuts

Ball valves is a quarter turn type valve, the colsure member is a ball which can rotating 90 °. When the valve is positioned where the bore is aligned in the same direction as the pipeline, the valve is open, and turning the ball by 90 °, then the valve closed. There’s a stem and trunnion to fix the ball, and the ball can not move like a floating ball valve, so called trunnion mounted ball valve. Compared with multi-turn valves, ball valves with shorter opening and closing time, longer lifetime, and less space for installation, and the opened or closed state of the valve can be easily detected by position of the handle. Ball valve is widely used in oil & gas, petrochemical, power industries, and usually for on-off application, not suitable for capicity control purpose.
