Y-type filter is an indispensable filter device for conveying medium pipeline system. Y-type filter is usually installed at the inlet of pressure relief valve, pressure relief valve, water level valve or other equipment to remove impurities in the medium to protect the normal use of valves and equipment. Y-type filter is a small equipment to remove a small amount of solid particles in the liquid, which can protect the normal work of the equipment. When the fluid enters the filter cylinder with a certain size of filter screen, the impurities are blocked, and the clean filtrate is discharged from the filter outlet. When it is necessary to clean, as long as the removable filter cylinder is taken out and reloaded after processing, therefore, it is very convenient to use and maintain.

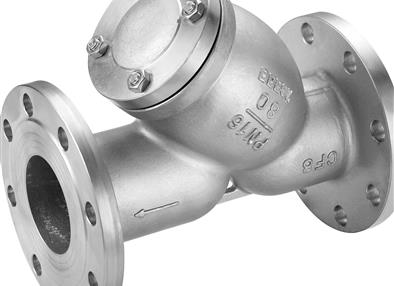

DIN flange end Y strainer

Design:DIN 3357-1,EN12516-1

Face to face length:DIN 3202F1/F4/F5/F17/F18

Flange dimension:DIN 2542/2545/ EN1092

Inspect and test:DIN 3230/3,EN12266

Material range:Carbon steel,Stainless steel 304,316

Pressure:PN16-PN40

Size range:DN15-DN600
