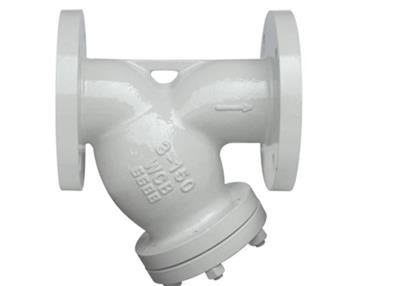

ANSI flanged Y strainer

ANSI flanged Y strainer

Short Description:
Casting or welded body
Drain plug
Stainless steel screen (20 mesh, 40 mesh, 80 mesh,120 mesh)

ANSI Flanged Y strainer

Stainless Steel API flange end Y strainer

Design:ANSI B16.34

Face to face length:ANSI B16.34

Flange dimension:ANSI B16.5

Pressure temperature rating:ANSI B16.34

Inspection and test:API 598

Material:stainless steel CF8,CF8M(on optional)


Size range:1/2"-24"

Screen mesh:40mesh/60mesh/80mesh

Product Introduction
Y-type filter is an indispensable filter device for conveying medium pipeline system. Y-type filter is usually installed at the inlet of pressure relief valve, pressure relief valve, water level valve or other equipment to remove impurities in the medium to protect the normal use of valves and equipment. Y-type filter is a small equipment to remove a small amount of solid particles in the liquid, which can protect the normal work of the equipment. When the fluid enters the filter cylinder with a certain size of filter screen, the impurities are blocked, and the clean filtrate is discharged from the filter outlet. When it is necessary to clean, as long as the removable filter cylinder is taken out and reloaded after processing, therefore, it is very convenient to use and maintain.
The function of the filter is to remove suspended matter and particulate matter, reduce turbidity, purify water quality, reduce system dirt, bacteria and algae, rust and so on, so as to purify water quality and protect the normal operation of other equipment in the system.
