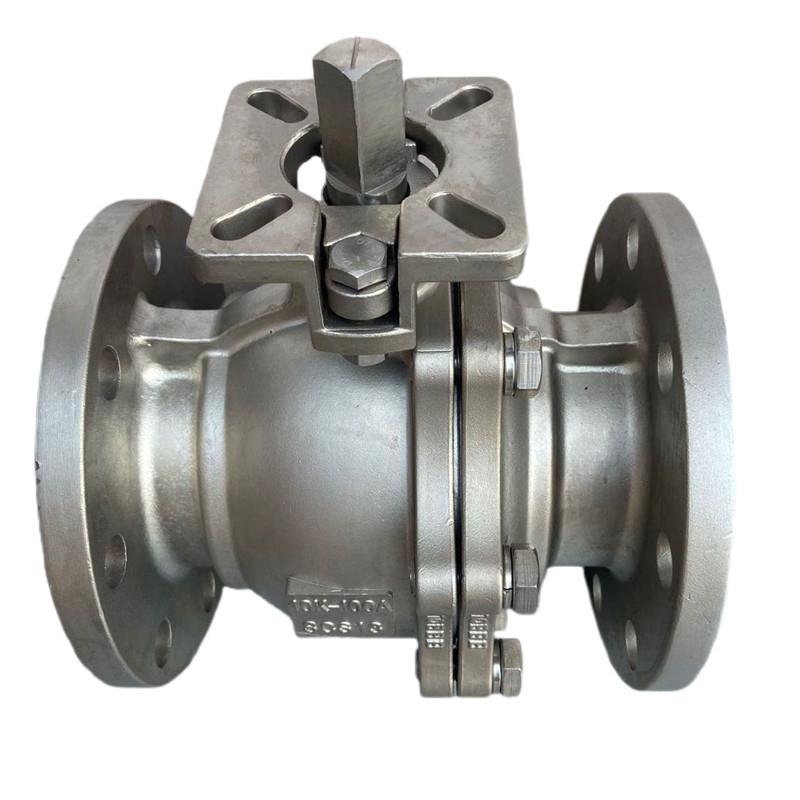

Stainless Steel JIS 10K Flange Ball Valve

Stainless Steel JIS 10K Flange Ball Valve

Size range: From DN15 to DN200(floating ball type)

Pressure range: From JIS10K toJIS20K

Seat: PTFE,TEFLON,PEEK

Material: Cast iron, ductile iron, cast steel(SCPH2),Stainless steel(SCS13 & SCS14)

Suitable medium: water, oil, steam, nitric acid, acetate acid and so on

Suitable temperature: -29 degree to 360 degree The seat material can be selected able to endure high pressure
Inquiry Contact Us

Product Details

2-PC Ball Valve Flange end JIS 10K/20K

Features

．Investment casting

．Anti-staticdevice

．Blow-out proof stem


Product application industry

The product is suitable for industries such as petroleum, chemical, natural gas, biochemical, pharmaceutical, environmental protection, and new energy.


Technical Specification

DN:Full port，DN15～DN150

W.P:10K/20K

W.T:-20℃～180℃

Body Materia:WCB/CF8/CF8M

Design:JIS B2002

Flange dimension:JIS B2220

Face to face:JIS B2002

Inspection&testing:JIS B2003
