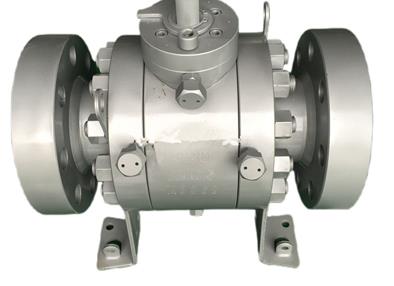

Features of Metal Seated Trunnion Mounted Ball Valves:
Trunnion Mounted Ball
Floating Spring Loaded Seat
Double Block and Bleed (DBB) Design Available
Split Body, End Entry
2-Piece or 3-piece Body
Full Port for Pigging Operation
Fire Safe to API 607
Antistatic Design
Anti-blowout Stem
Gear Operation or Actuator Available

Applicable Standards of Metal Seated Trunnion Mounted Ball Valves:

a) Design & Manufacture: API 6D, BS 5351, API 607
b) Face to Face: API B16.10, API 6D, EN 558, DIN 3202
c) End Connection: ASME B16.5, ASME B16.25, EN 1092, JIS B2220
d) Test and Inspection: API 6D, EN 12266, API 598
