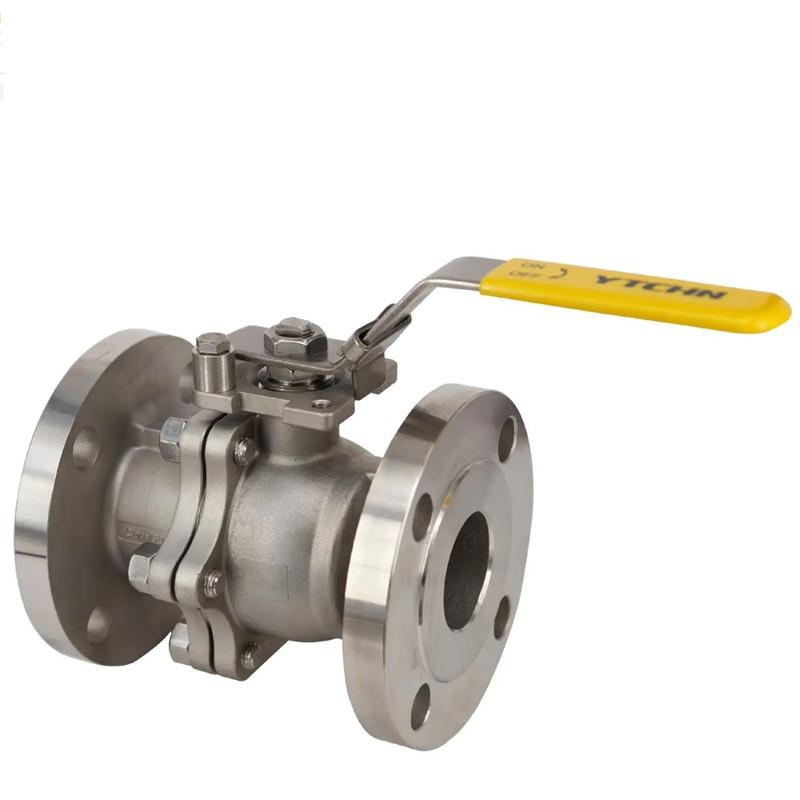

2PC DIN Flanged Ball Valve

Technical Specification

DN:Full port，DN15～DN100

W.P:PN16/40

W.T:-20℃～180℃

Body Materia:WCB/CF8/CF8M

Actuator:Pneumatic，Electric motor

Design: DIN3357, EN12516-1

Flange dimension: DIN 2543-2545, EN1092-1 PN16/40

Face to face: DIN3202 part1-F4(DN15～DN100), DIN3202 part1-F5(DN125～DN300)

lnspection &testing: DIN3230， EN12266-1

Connection:Flanged end
